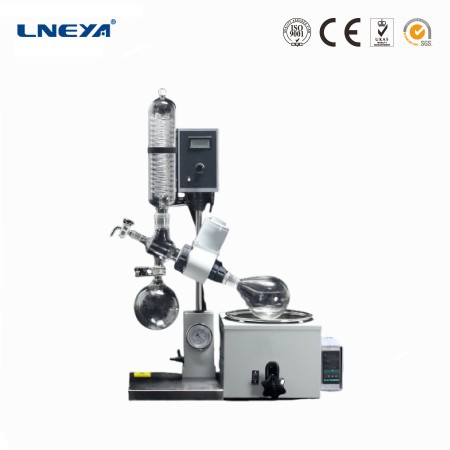

Rotary Evaporator 1-50L
for Laboratory, Pilot-scaleSmall desktop rotary Evaporator 1L~5L
Pilot and ground mounted rotary evaporators 10L~50L
Rotary evaporator, also known as rotary evaporator. It consists of motor, distillation flask, heating pot, condenser and other parts. It is suitable for the concentration of small amounts of liquids. It is easy to operate, but the heating speed is slow and it takes a long time to achieve the desired evaporation effect. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions, and is used in chemistry, chemical industry, biomedicine and other fields.
Small desktop rotary Evaporator, easy to maintain 1L~5L
Capacity: 0.1-5L
Reaching vacuum:<133Pa
Bath temperature selection: 100℃ water bath/180℃ oil bath
Pilot and ground mounted rotary evaporators. Safe, durable, and efficient, customizable for high vacuum, explosion-proof, and pneumatic applications. 10L~50L
Reaching vacuum:<133Pa (customized 50Pa)
Bath temperature selection: 100℃ water bath/180℃ oil bath
Parâmetros
for Laboratory
(Capacity is calculated based on actual)
| 1 | Evaporation bottle（ml） | 0.5+1L/29,(2L/29) |
| 2 | Collecting bottles（ml） | 1L/S35 |
| 3 | Condensing area (m2) | 斜式0.14 |
| 4 | Speed(rpm) | 10-180 |
| 5 | Maximum evaporation rate(H2O)** | 1.2L/H |
| 6 | Reaching vacuum | <133Pa（1.33mbar，1Torr） |
| 7 | Bath power(kW) | 1.3 |
| 8 | Static temperature control range and fluctuation(℃) | 0-99±0.2 |
| 9 | Bath size (cm), capacity, material | φ24×15 6L SUS304 |
| 10 | Alimentação eléctrica | 220V,1P,50/60Hz |
| 11 | Overall size(cm) | 88x53x70H |
| 1 | PTFE Combined seal | - |
| 2 | PTFE Lower discharge valve | / |
| 3 | Bottle return device | - |
| 4 | Pressure relief port | / |
| 6 | Vacuum gauge | / |
| 7 | Digital Display | Bath temperature |
| 8 | Conical PTFE diaphragm | / |
| 10 | Bath lifting | - |
| 11 | Reflow | - |
| 12 | Steam temperature measuring port | / |
| 14 | Water bath cover | O |
| 15 | Conversion interface | O |
| 16 | Alternative evaporating flask | 100ml,250ml,2L |
Pilot-scale
(Capacity is calculated based on actual)
| 1 | Evaporating flask (L) | 10L/F95 |
| 2 | Collection bottle with drain port (L) | 5L/F40 |
| 3 | Condensation area (m2) | 0.57 |
| 4 | Rotating speed(rpm) | 3-110 |
| 5 | Evaporation rate(H2O)** | 3L/H |
| 6 | Reaching vacuum Pa | <133Pa(1.33mbar,1Torr) |
| 7 | Bath power(kW) | 3/2(Ex or Oil) |
| 8 | Static temperature control range and fluctuation(℃) | 0-99±0.2 |
| 9 | Bath size (cm), capacity, material | φ35x25H,22L,SUS304 |
| 10 | Alimentação eléctrica | 220V,1P,50/60Hz |
| 11 | Machine size (cm) | 95x50x180H |
| 1 | Glass connection | Ground mouth with PTFE diaphragm |
| 2 | Electric lifting bath | / |
| 3 | Continuous collection in series | / |
| 4 | PTFE Combined dynamic seal | - |
| 5 | Frequência | - |
| 6 | Feed valve | Glass |
| 7 | PTFE Discharge valve | PTFE |
| 8 | Vacuum gauge | - |
| 9 | Vacuum Throttle Valve | - |
| 10 | Cooling water quick connect connector | / |
| 11 | Steam temperature measuring port | / |
| 12 | Digital Display | Bath temperature and speed |
| 13 | Stainless steel rack* | / |
| 14 | Large evaporation aperture upgrade* | / |
| 15 | Anti-collision system | / |
| 15 | Low temperature cold trap | / |
| 16 | Bottle unloading rack | / |
| 17 | Steam heating* | / |
| 18 | Optional evaporating flask (customizable pressure groove type) | 5L |
| 19 | Ex explosion-proof upgrade* | O |
Symbol meaning:/- None, ● – Equipped, ○ – Optional (* – This optional function must be assembled during factory production and cannot be separately equipped)
Note: The specific parameters of the associated models or customized models may differ from those of the standard models. You can contact us for specific inquiries.
Descrição do produto
- The sealing technology adopts unique design and precise processing technology, resulting in higher air tightness
- High borosilicate glass material, corrosion-resistant, enhances service life
- Perfluorinated discharge, effectively preventing contamination of materials
- The overall glass and stainless steel are export standards, which are stable and reliable.
- Stainless steel bath heating, stable and reliable
- Professional explosion-proof technology, safe operation.
