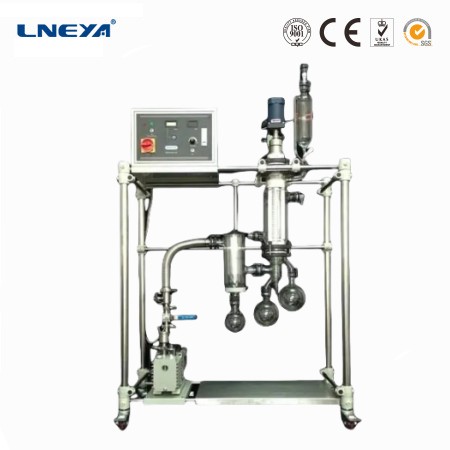

Molecular distillation (Short range distillation)

Short range distillation (molecular distillation) is a new separation technology that can solve problems that conventional distillation techniques cannot solve. It can achieve liquid-liquid separation at temperatures far below the boiling point of liquids under extremely high vacuum, based on the difference in the average free path of molecular motion. Especially suitable for the separation and purification of high boiling point, thermosensitive, and easily oxidized materials.

Evaporation Area 1200cm ²
Built in condensing area of 1100cm ²
Magnetic Drive 480rpm
Standard system pressure reaches 0.05mbar
Digital pressure display from 0.001 to 1000mbar

Parameter

1	System ultimate pressure	0.05mbar
2	Distillation unit	Jacketed evaporator with an evaporation area of 1200cm ² and a built-in condensation area of 1100cm ²
3	Rotating drive unit	60-480 RPM magnetic drive
4	Film-forming system	Self cleaning roller film forming (without metal exposure)
5	Standard feeding unit	1000ml dispensing bottle, adjustable from 10-5000ml/hour (customizable)
6	Discharge unit	Distillate (light component) 1000ml, residue (heavy component) 1000ml (customizable)
7	Triple collection kit	O
8	Vacuum system	Stainless steel valve group, pipeline
9	Main vacuum source	Rotary vane pump
10	Druckanzeige	Digital display
11	Pre degassing interface	-
12	Cold trap	-
13	Cleaning kit	-
14	System cold and hot cycle	O
15	Upgrade to full heating	O
16	Large capacity incoming and outgoing materials	O
17	Auxiliary framework	O
18	Rack size	1200X600X2300
19	Quelle	220V,1P,50/60HZ

Symbol meaning:/- None, ● – Equipped, ○ – Optional (* – This optional function must be assembled during factory production and cannot be separately equipped)
Note: The specific parameters of the associated models or customized models may differ from those of the standard models. You can contact us for specific inquiries.

Beschreibung des Produkts

Main application fields: food, medicine, fine chemicals, electronic materials, plastic engineering and the separation and purification of polymers (such as polyols, fatty acids, polyphenols, polyurethane, epoxy resin, lactic acid, monoglyceride, essence, heavy oil and paraffin oil).

Work characteristics and principles:

1.The operating temperature is much lower than the boiling point of the material. Thermally sensitive materials, biological acid esters, high boiling point substances, and materials that are difficult to evaporate have great advantages in processing

2.The heating time is extremely short. Ordinary distillation requires several hours of heating, which can be completed in just a few seconds on short range distillation. It is low-carbon, environmentally friendly, and beneficial for maintaining material activity

3.It belongs to the physical separation process, which can maintain the natural state of the material and prevent contamination. Widely used for deodorization, decolorization, and purification of high value-added materials.
