KRYO 0℃~160℃

Oil Cooling Chiller

未分类

Temperature accuracy±0.3℃
Flow Accuracy±0.2L/min
Cooling Capacity12kW~38kW
Heating Capacity15kW~38kW
Flow rate output1～40 L/min
CoolantOil

INQUIRY

Cooling and heating temperature and flow control

The object under test is connected to a test platform adapter
The component is cooled and heated by ethylene glycol water solution
-40’C~100°C (expandable to 150°C)

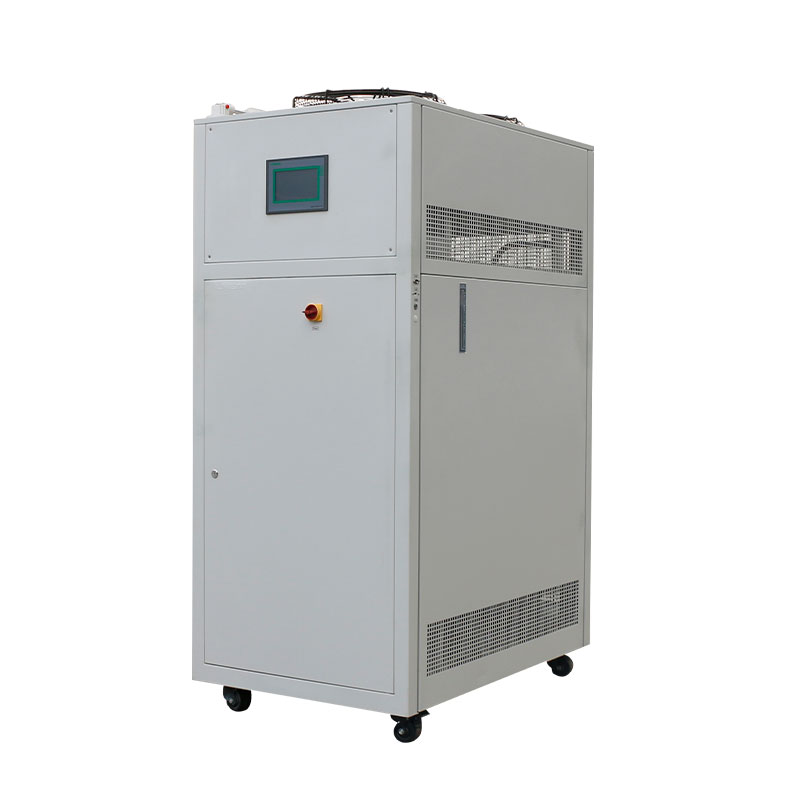

Oil Cooling Chiller KRYO Series（images 1）

Color touch screen
Equipment power switch
Liquid level light
High and low pressure gauges
Communication interface
Four-way casters
Circulation pipeline
Electrical cabinet
Compressor circulation pump

KRYO SERIES		A15W	A25W	A38W	A15W2S	A25W2S	A38W2S
Temperature range		0℃ ~ +160℃ Different viscosity oils have different temperature ranges
Temperature control accuracy		±0.3℃
Temperature feedback		PT100
Flow control		2L/min~20L/min, one in and one out, in and out control linkage			2L/min~15L/min Two outputs, one input Flow control linkage
Flow accuracy		±0.2L/min
Pressure control		0.2bar~2.5bar
Heating capacity kW		15	25	38	15	25	38
Cooling capacity kW	125℃	15	25	38	15	25	38
	20℃	12	20	30	12	20	30
Compressor		Emerson Copeland Scroll Flexible Compressor/Japanese Scroll Flexible Compressor
Throttling method		Electronic expansion valve
Evaporator		Plate Heat Exchanger
Circulation pump		Gear Pumps
Flow regulation		Inverter vector control
Input, Display		7-inch color touch screen/PLC controller
Communications		CAN communication
Refrigerant		R410A
Coolant		Oil
Liquid inlet and outlet		G3/4
Cooling water @20℃		3000L/H	4200L/H	6200L/H	3000L/H	4200L/H	6200L/H
Cooling water connection		G3/4	G3/4	G1	G3/4	G3/4	G1
power supply		380V 50HZ three-phase five-wire
Breaker		50A	80A	125A	50A	80A	125A
External tooling		External oil return tooling size 600×850×600
		If the external oil return fixture is selected, the fixture needs to be installed under the test motor.

Descriptions

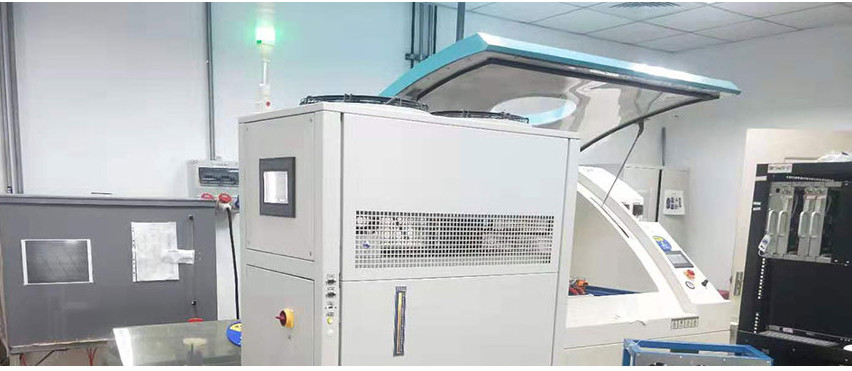

Oil Cooling Chiller KRYO Series（images 2）

For the power battery charging management, the precision temperature control device for testing the permanent magnet synchronous motor, the switched reluctance motor, the asynchronous motor and its controller can realize the local + remote control mode through the liquid crystal controller panel;

With automatic fault protection function, it can output corresponding signals to ensure the safety of equipment. The main parts are all international brands, quality assurance, high-pressure electrostatic spray treatment on the surface, and auxiliary equipment can be added according to specific needs.

Oil Cooling Chiller KRYO Series（images 3）
